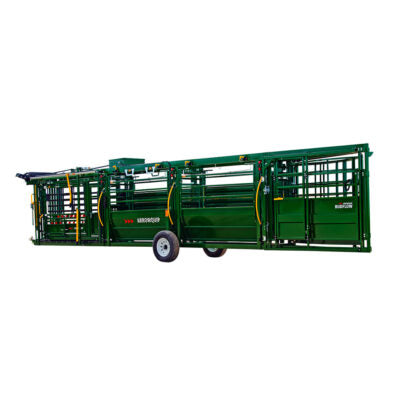

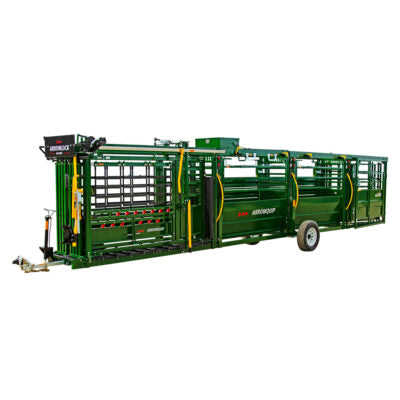

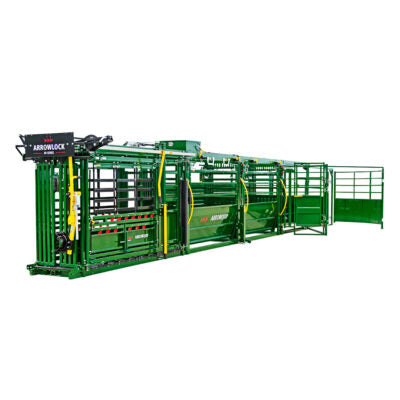

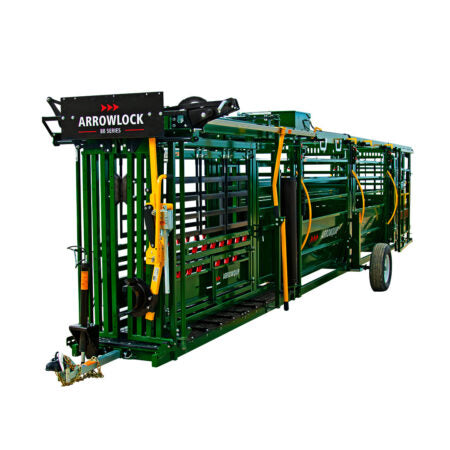

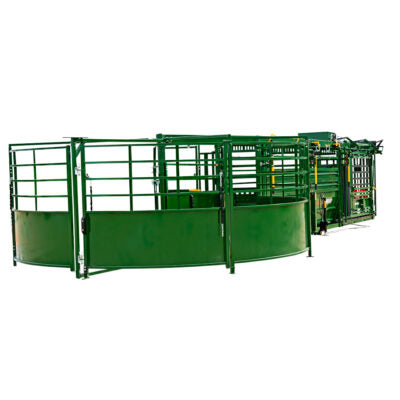

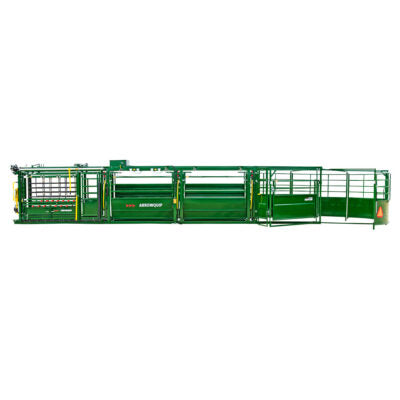

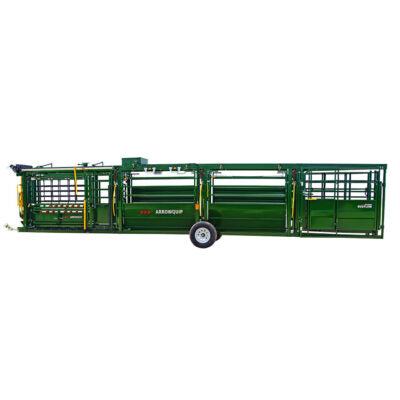

With the Arrowlock 88 Series Portable Cattle Chute, Alley, and Tub, you get it all in one compact and convenient package. With various options and add-ons available, you can get a truly unique portable unit that works for your operation.
This portable system features leads with theArrowlock 88 Series Cattle Squeeze Chutewith the never-before-seen Arrowlock Head Gate with a ratchet locking mechanism for a stronger and more secure hold. Followed by 18’ of alleyway, you’re cattle can seamlessly flow through the unit from the cattle tub.
Designed with low-stress cattle handling in mind, this unit is packed with 3E components from front to back so you can ensure your operation moves smoothly, no matter where you are.
Product Specifications
3E Head Gate design uses light to draw cattle into the chute

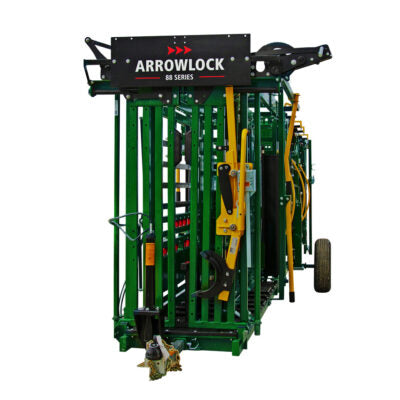

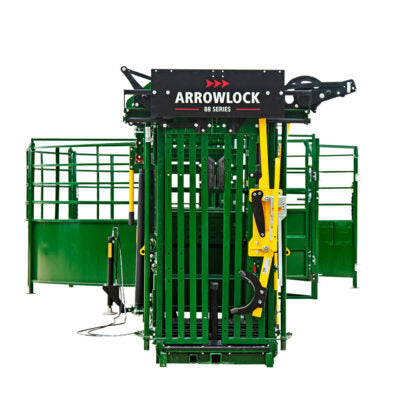

All-newArrowlock Head Gatewith different settings for different sized livestock
Head Gate handle can be used at any point alongside the chute
Complete parallel squeeze that ranges from 31.5” fully open to 7.75” fully closed

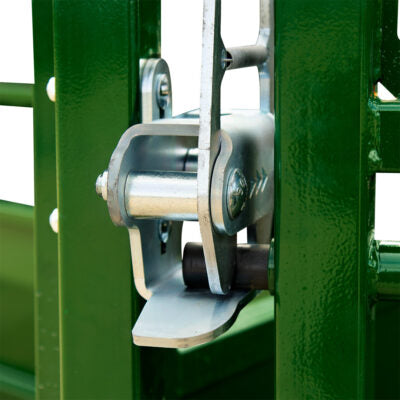

Poly-coated slam latches eliminate metal clanging
Two rows of poly-composite rump fingers engineered to handle high pressure for safety

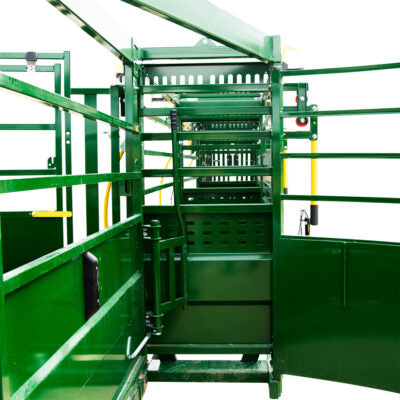

3E Rolling Door that can be operated from either side of the cattle chute
Top-mounted rolling door track to eliminate build up
Six side access panels that are removable and can be configured multiple ways
True virgin rubber floor for extra traction backed by lifetime guarantee
6 ½” gap by the neck for needle access

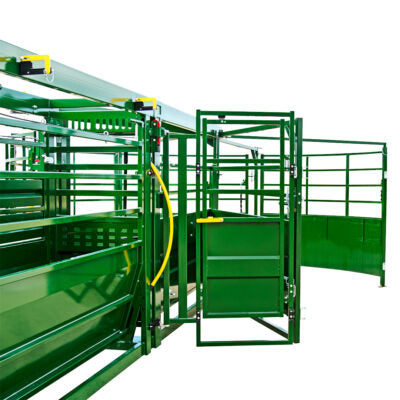

Easy Flow Cattle Alley can be adjusted from either side
Removeable panels on the Easy Flow Cattle Alley allow you to control what cattle see

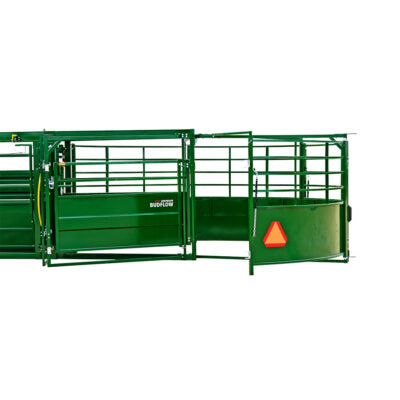

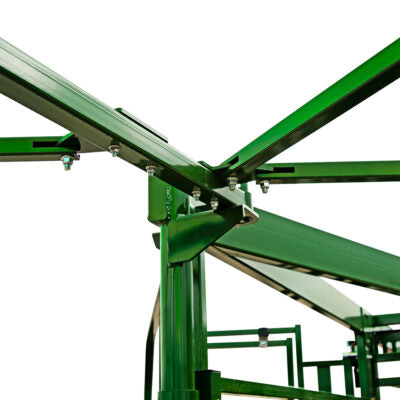

Tub features welded-on joiner bars for easy set up and tear down

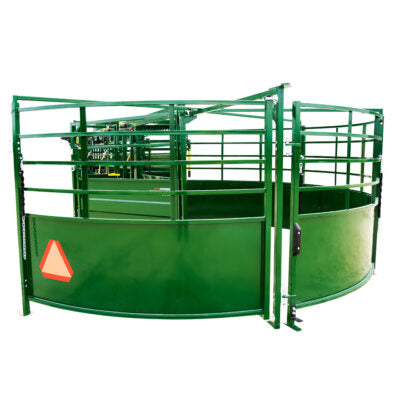

Cattle Tub folds in on itself for compact transport
